Wegner Automotive LSX Harrop 2650I Drive Kit | Corvette (Y-Body) Offset
WAK047 Harrop 2650i
Corvette Offset
Wegner Automotive offers our drive kit support for Harrop's new 2650i supercharger
Expertly engineered and dyno-tested in-house for high horsepower street use, this Front Accessory Drive Kit includes key features such as-

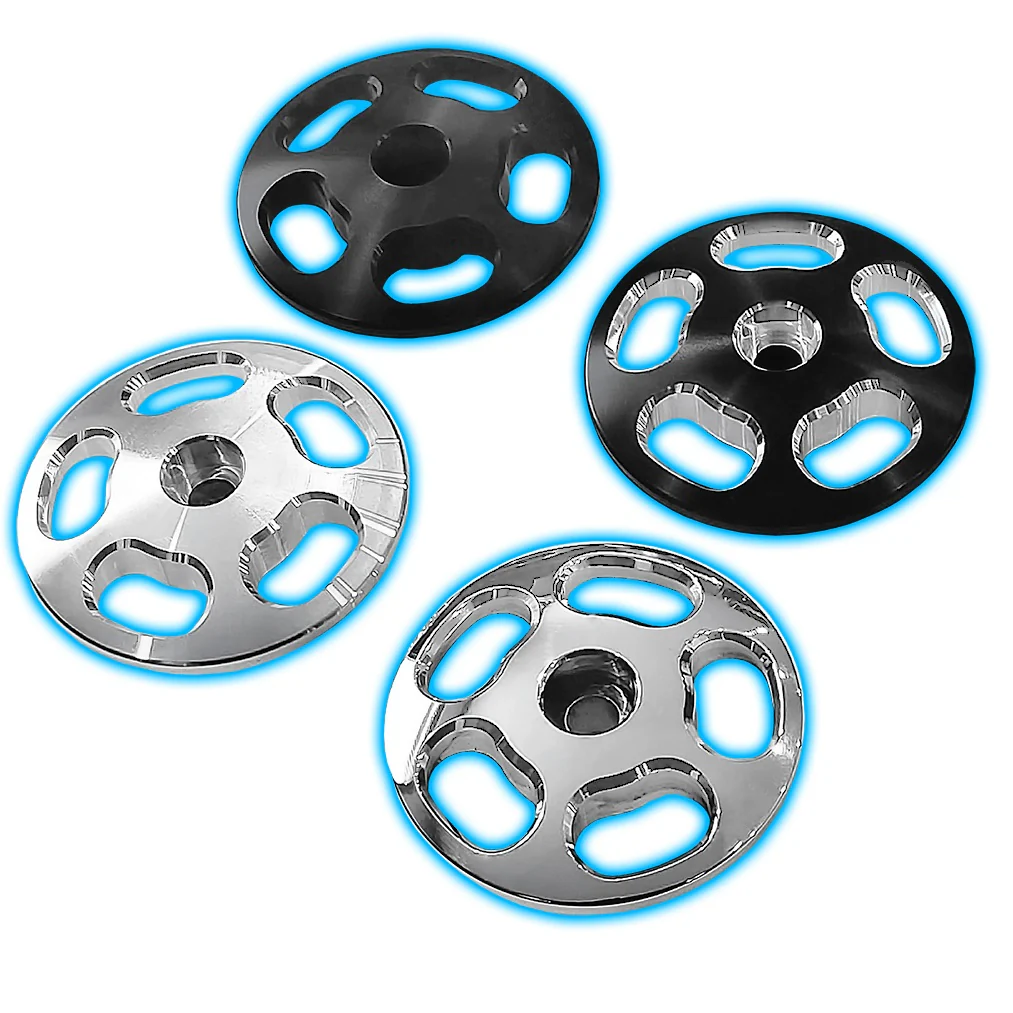

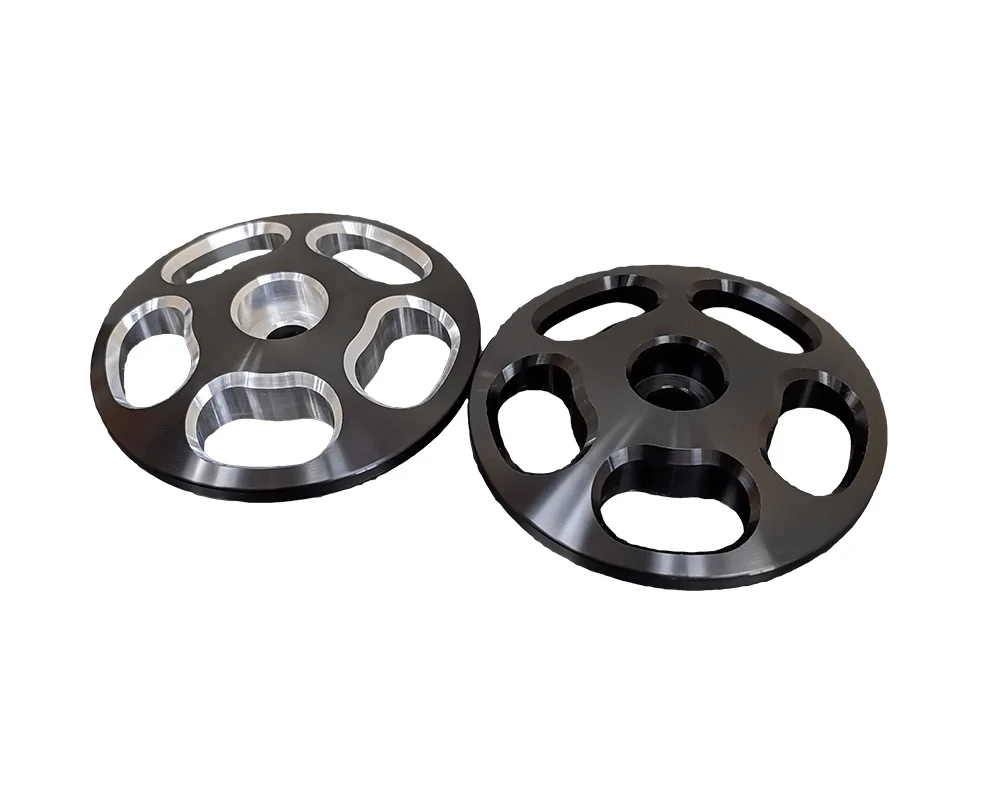

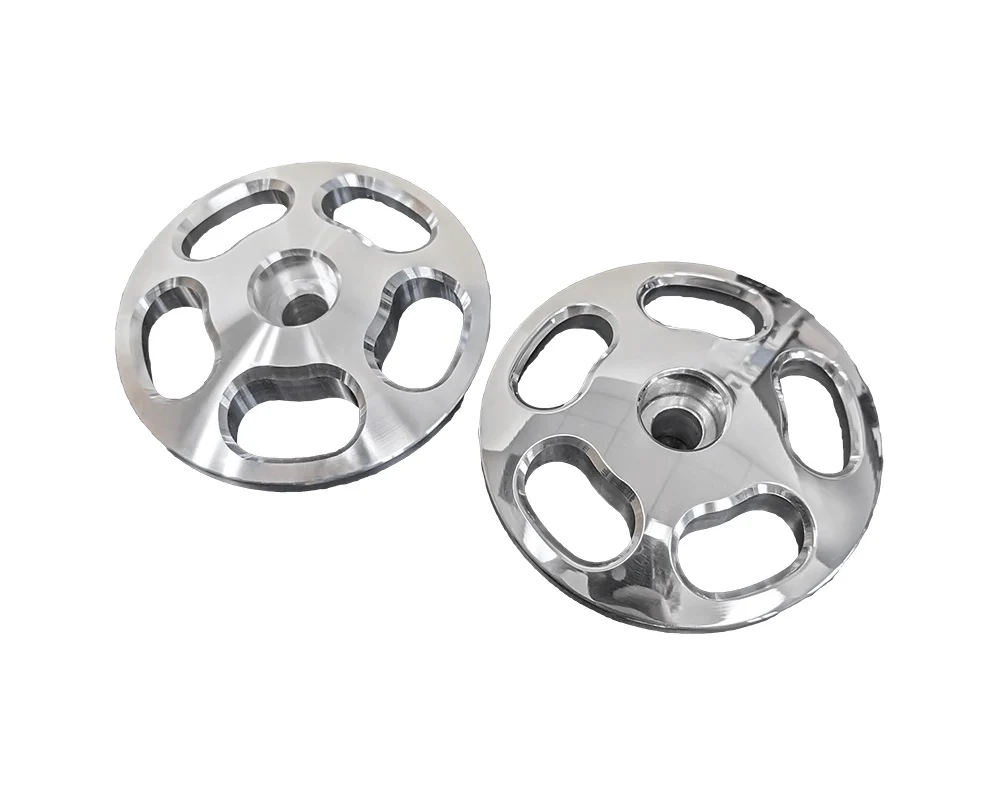

- CAD designed and CNC machined billet aluminum brackets and pulleys for maximum rigidity, eliminating component flex in high performance applications
- Complete belt wrap with an extra idler pulley for NO slip operation
- Dedicated 8 rib supercharger belt
- Multiple blower pulley ratios depending on boost requirements
- Ask about our billet lid for low hood clearance applications
All our accessory drives are built to order - please allow 4-6 weeks for delivery
Note: Only Billet components would come in custom finish. Factory components would come in factory finish.

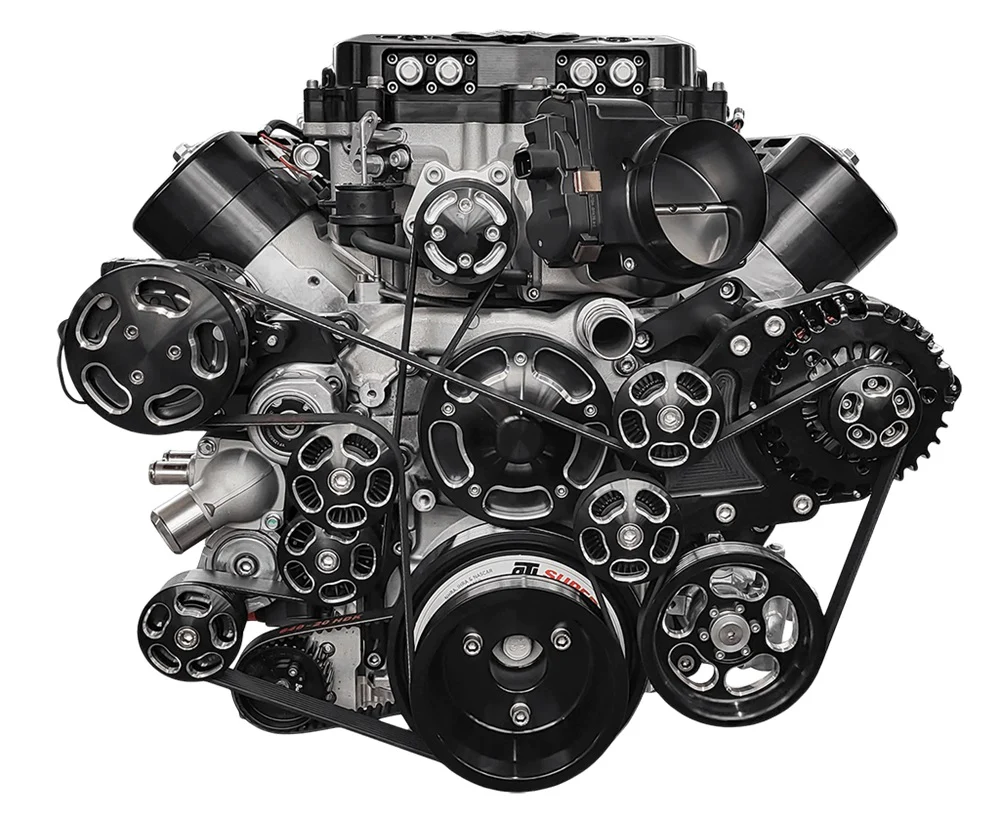

Our base WAK047 Accessory Drive includes the following -
- Heavy Duty Gates Belt Tensioners
- Standard Internal Fan 170 Amp 1 Wire or GM 2 pin Late Model Powermaster Alternator (Upgrade to 225 or 370)
- GM Type 2 Power Steering Pump
- OE LSA / LS3 Water Pump
- OE Sanden SD7 AC Compressor
- All necessary Wegner Automotive precision CNC Machined Billet brackets, Pulleys, and Stainless-Steel Mounting Hardware
ATI damper crank pulley
Options:
Supercharger crank pulley diameter; OEM, 3% or 12% overdrive
Power steering pump
GM Type II Style PS Pump
Options:
- Attached PS Pump reservoir (standard) Optional fittings (6AN, 10AN) for Remote Res.
Alternator
170 Amp single wire or GM 2 pin with internal fan
Optional: 225 or 370 Amp upgrade
Finish Color
- Solid Black
- Machined Aluminum
- Two-Tone Diamond Cut ($100)
- Polished Aluminum($300)
Optional Alternator
- 170 Amp Powermaster
- 225 Amp Powermaster ($150)
- 370 Amp Mechman ($300)
Power Steering Reservoir
- Power Steering Reservoir Attached to Pump
- Power Steering -6,-10 A/N fittings for Remote Mount
ATI Damper
- OE Diameter
- 12% Overdrive
Supercharger Pulleys
- Multiple sizes available depending on engine build and desired boost
