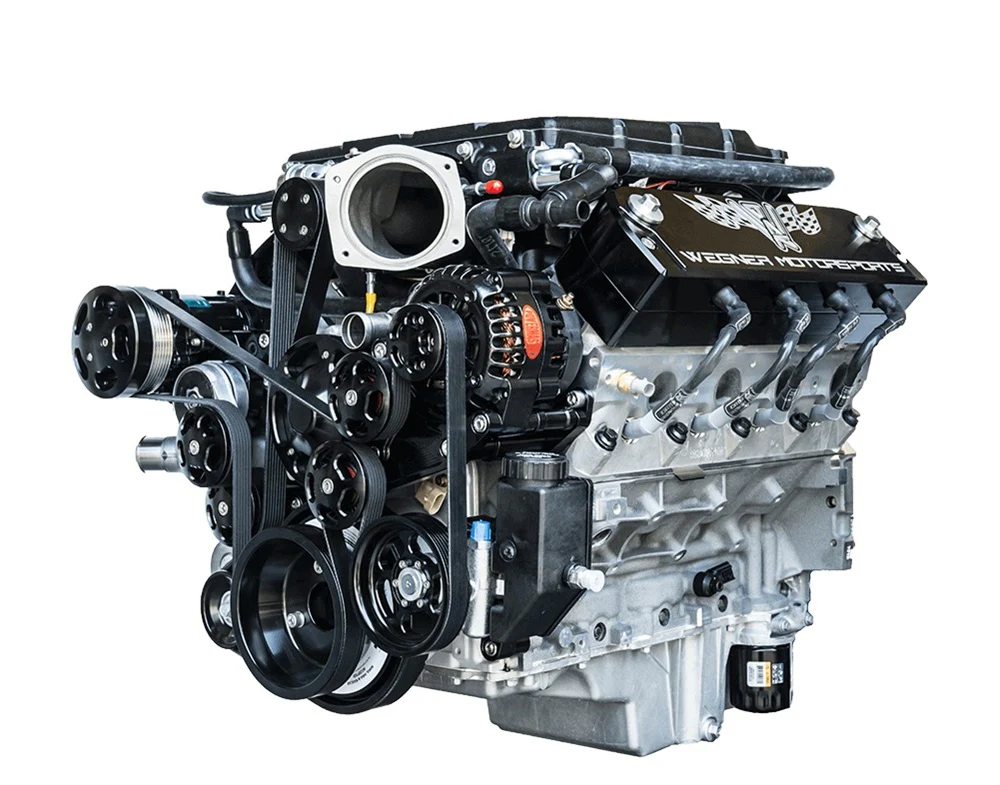

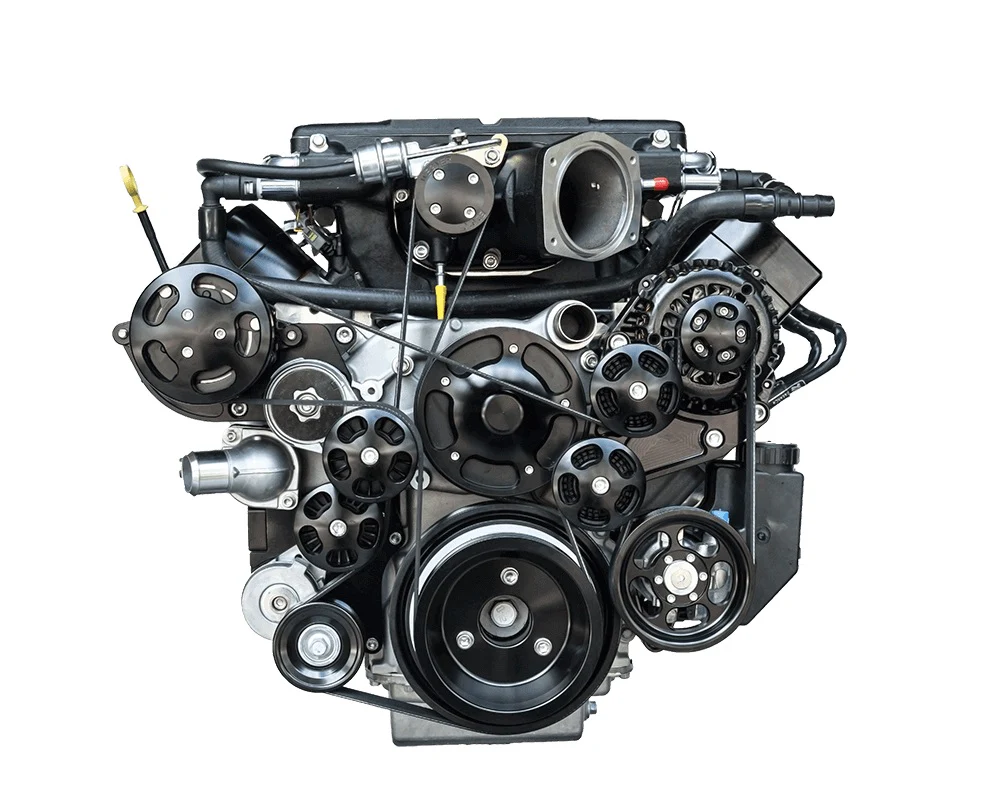

Wegner Automotive LSX Edelbrock 2.3L Drive Kit | Corvette (Y-Body) Offset
WAK042 Edelbrock 2.3L
Corvette Offset
The WAK042 Kit has been engineered for high performance street use with key features such as:
- Max pulley belt wrap for NO slip, extra idler pulley to give power steering complete wrap
- Multiple blower pulley ratios depending on boost requirements
- Internal fan alternator cools better while also allowing for more RPM vs. external fans which are prone to bending
- Dedicated 8 rib Supercharger belt
- Alternator, AC, & Power Steering are on separate 6 rib belt
- CAD designed & CNC machined brackets & pulleys
Kit will NOT fit with VVT front covers.
All our accessory drives are built to order - please allow 4-6 weeks for delivery
Note: Only Billet components would come in custom finish. Factory components would come in factory finish.Â
ATI damper crank pulley
Options:
Supercharger crank pulley diameter; OEM or 12% overdrive
Power steering pump
GM Type II Style PS Pump
Options:
- Attached PS Pump reservoir (standard) Optional fittings (6AN, 10AN) for Remote Res.
Alternator
170 Amp single wire or GM 2 pin with internal fan
Optional: 225 or 370 Amp upgrade
Finish Color
- Solid Black
- Machined Aluminum
- Two-Tone Diamond Cut ($100)
- Polished Aluminum($300)
Optional Alternator
- 170 Amp Powermaster
- 225 Amp Powermaster ($150)
- 370 Amp Mechman ($300)
Power Steering Reservoir
- Power Steering Reservoir Attached to Pump
- Power Steering -6,-10 A/N fittings for Remote Mount
ATI Damper
- OE Diameter
- 12% Overdrive
Supercharger Pulleys
- Multiple sizes available depending on engine build and desired boost
